1250 kVA power class
Used Cummins 1250 kVA Diesel Generator
This is a used 1250 kVA diesel generating set, offered as an individual unit and photographed where it stands. The set is built on a KTA50-G3 engine. The alternator is a LVI634.

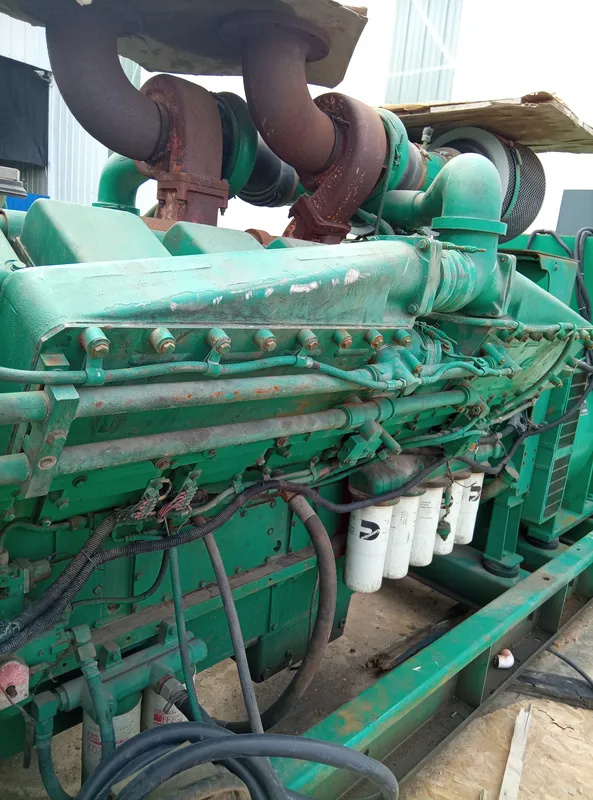

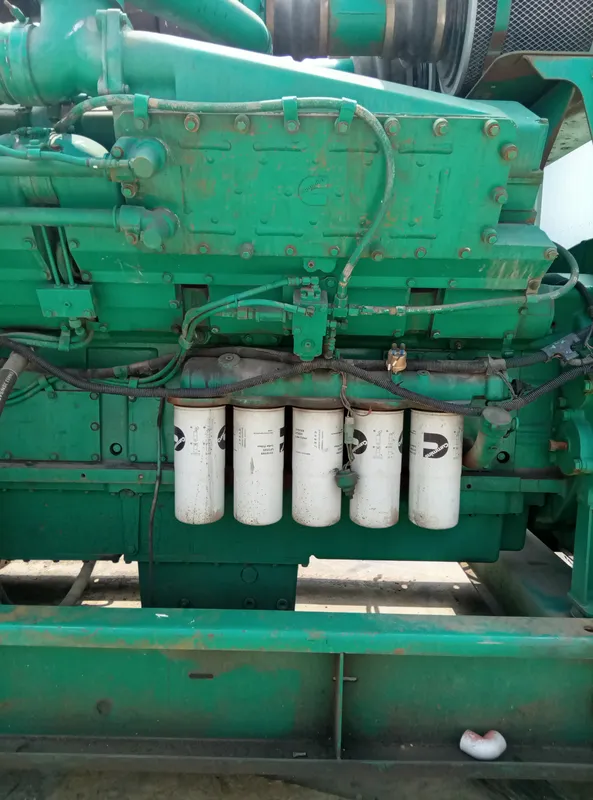

Every figure on this page is taken from the unit itself, and anything we could not confirm is left blank rather than estimated. Photographs on this page are actual unit photos of this set, and the set can be inspected before it ships.
Spesifikasi
Key parameters
| Parameter | Nilai |
|---|---|
| Model | kvg-cummins-1250kva-273 |
| Condition | Used |
| Daya utama | 1250 kVA |
| Standby power | 1400 kVA |
| Mesin | KTA50-G3 |
| Alternator | LVI634 |
Fuel consumption, dimensions and weight are confirmed against the engine datasheet when we quote, and are not estimated here.
Engine and fuel
Cummins datasheet for this rating
| Parameter | Nilai |
|---|---|
| Cummins datasheet engine | KTA50-G3 |
| Cummins datasheet alternator | LVI634 |
| Engine configuration | CCEC (Chongqing Cummins), V16, 50 L |
| Fuel consumption at 100% load | 202 L/h |
| Speed / frequency | 1500 rpm / 50 Hz |
| Rated voltage | 400/230 V, three-phase, four-wire |
| Pendinginan | Closed-circuit water cooling |
| Starting system | DC 24 V electric start |
| Aspiration | Turbocharged with an air-to-water charge cooler |
| Governor | Electronic governor |
| Bahan bakar | No. 0 light diesel |
| Fuel consumption rate | 200-210 g/kWh at full load |
| Insulation class | Class H |
| Ingress protection | IP23 |
| Steady-state voltage regulation | within +/- 1% |
Fuel figures are for 100% load. At 75% load the consumption is about 80% of the full-load figure.
PRP (prime power). Runs continuously under a variable load; a 10% overload is allowed for one hour in every 12 hours of operation.
ESP (standby power). For emergency use; it is not rated for sustained full load and is limited to 200 hours of operation per year.
Configuration
What can be added or changed
| Opsi | Fungsinya |
|---|---|
| Saklar pindah otomatis (ATS) | Starts the set and transfers the load when the mains fails, and returns it when the mains is stable again. |
| Base tank or bulk tank | Sets the autonomy. A bulk tank with a transfer system is the usual route where a full shift or a whole night has to be covered. |
| Control panel upgrade | An automatic mains failure panel or a remote monitoring panel with alerts, in place of key start/stop. |
| Voltage and frequency build | 380/220 V or a 60 Hz build at 1800 rpm, for sites that are not on the 400 V 50 Hz standard. |
| Exhaust and silencing | Critical or residential grade silencer and exhaust routing, where the site has a noise boundary to respect. |
| Paralleling module | Two or more sets share the load through an equalising control, for sites that grow or need redundancy. |
| Engine oil heater and coolant pre-heater | Keeps the engine warm for a fast, low-wear start in cold weather. |
Aplikasi
Where a 1250 kVA set is normally used
-
Site and production power
Lighting, hoists, tools and workshop loads on one bus, often for the whole working day rather than as standby.
-
Standby for a building
Hotels, clinics and offices that need the essential bus covered while the mains is down, with the load staged so the set is not asked to take everything at once.
-
Prime power off grid
Sites with no reliable utility supply, where the set runs as the main source and is serviced on a schedule rather than on failure.
Pertanyaan
Questions buyers ask about this set
Is this set new or used?
It is a used unit. The condition, the hours and the works we recommend before it goes into service are confirmed in the quotation, and the set can be inspected before it ships.
What is the price of this 1250 kVA set?
There is no price on this page. We quote against the configuration you need – enclosure, tank, control panel, ATS and delivery city – because those change the number more than the base set does. Send the request and you have a written quotation within 24 hours.
What is the fuel consumption of this set?
Consumption follows the load, and the figure we quote is the one on the engine datasheet for this build at 50%, 75% and 100% load. Tell us the load profile you expect and we send those three figures with the quotation.
How long is the delivery time?
The set is available from stock, and the delivery time depends on the options you add and the destination. Give us the delivery city in the request and we confirm the transit time in the quotation.
Can it be supplied for 60 Hz or a different voltage?
Yes. 50 Hz builds run at 1500 rpm and 60 Hz builds at 1800 rpm. Voltage, frequency and phase decide the alternator winding and the control panel, so name them in the request.
Minta penawaran
Quote for model kvg-cummins-1250kva-273
There is no price online for this set. Send the rating you need, the voltage and frequency, the load it has to carry and the delivery city, and we answer with the configuration, the price and the lead time within 24 hours.
Prefer email or WhatsApp? Write to [email protected] atau message us on WhatsApp, quoting model kvg-cummins-1250kva-273. We use the details you send to answer this enquiry and nothing else.
